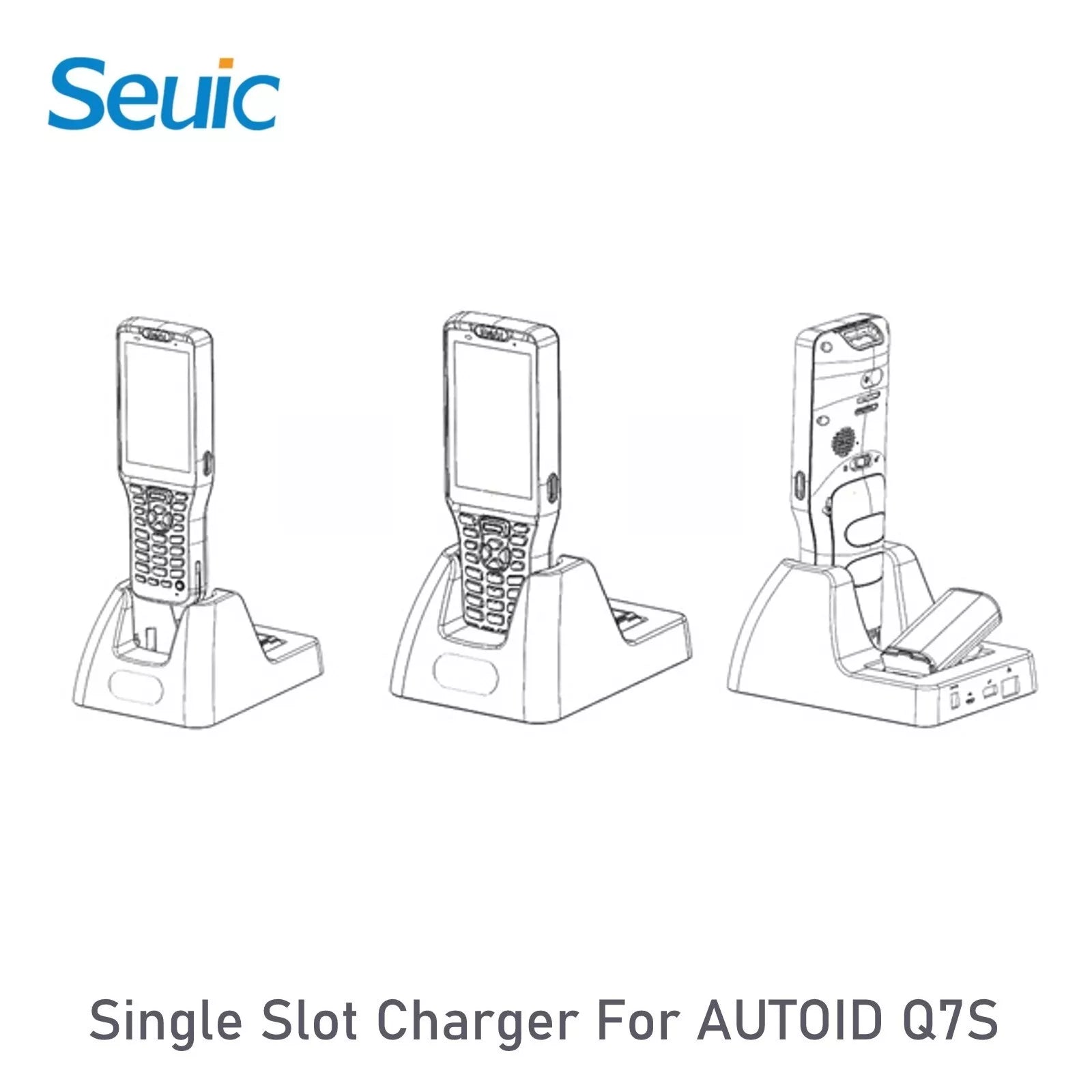

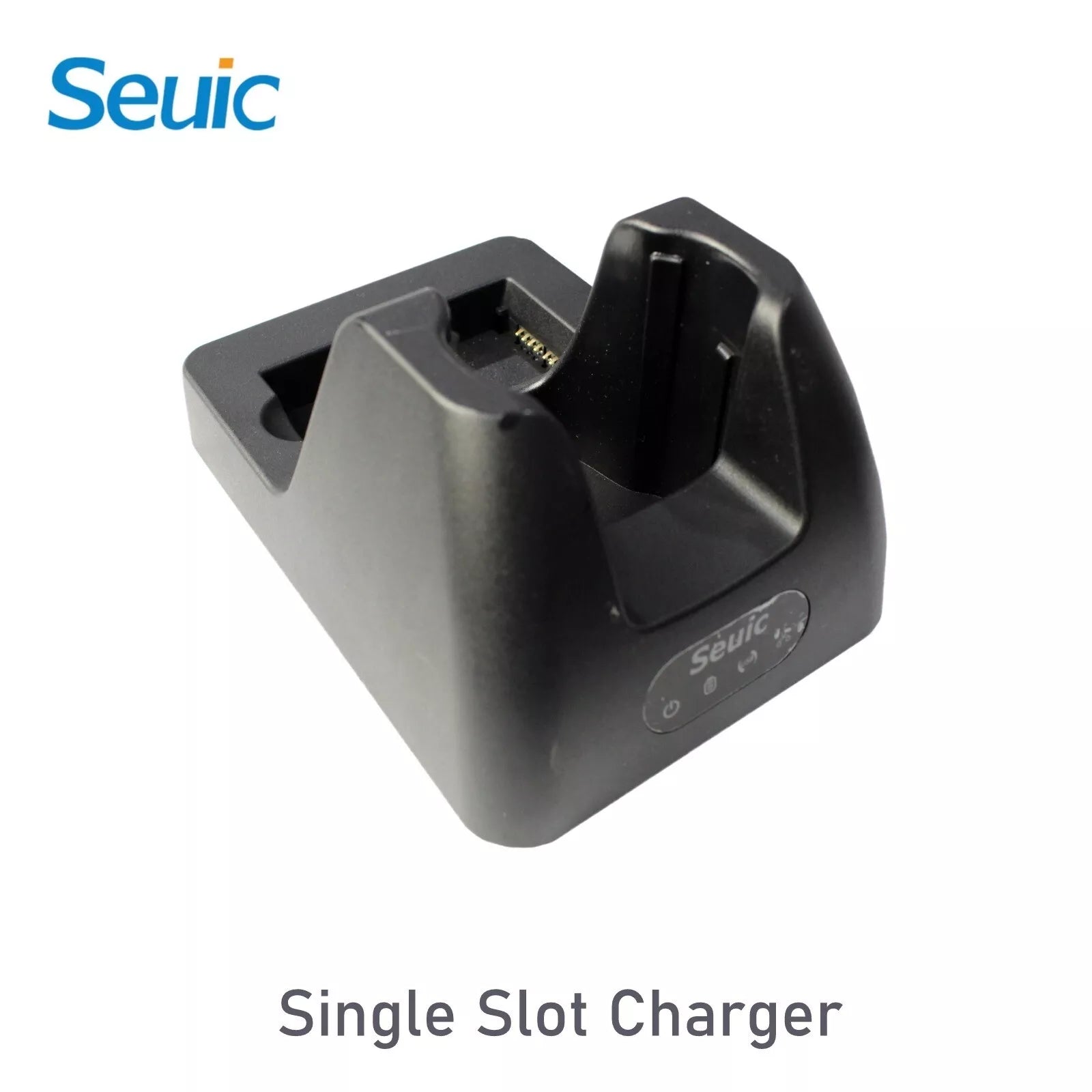

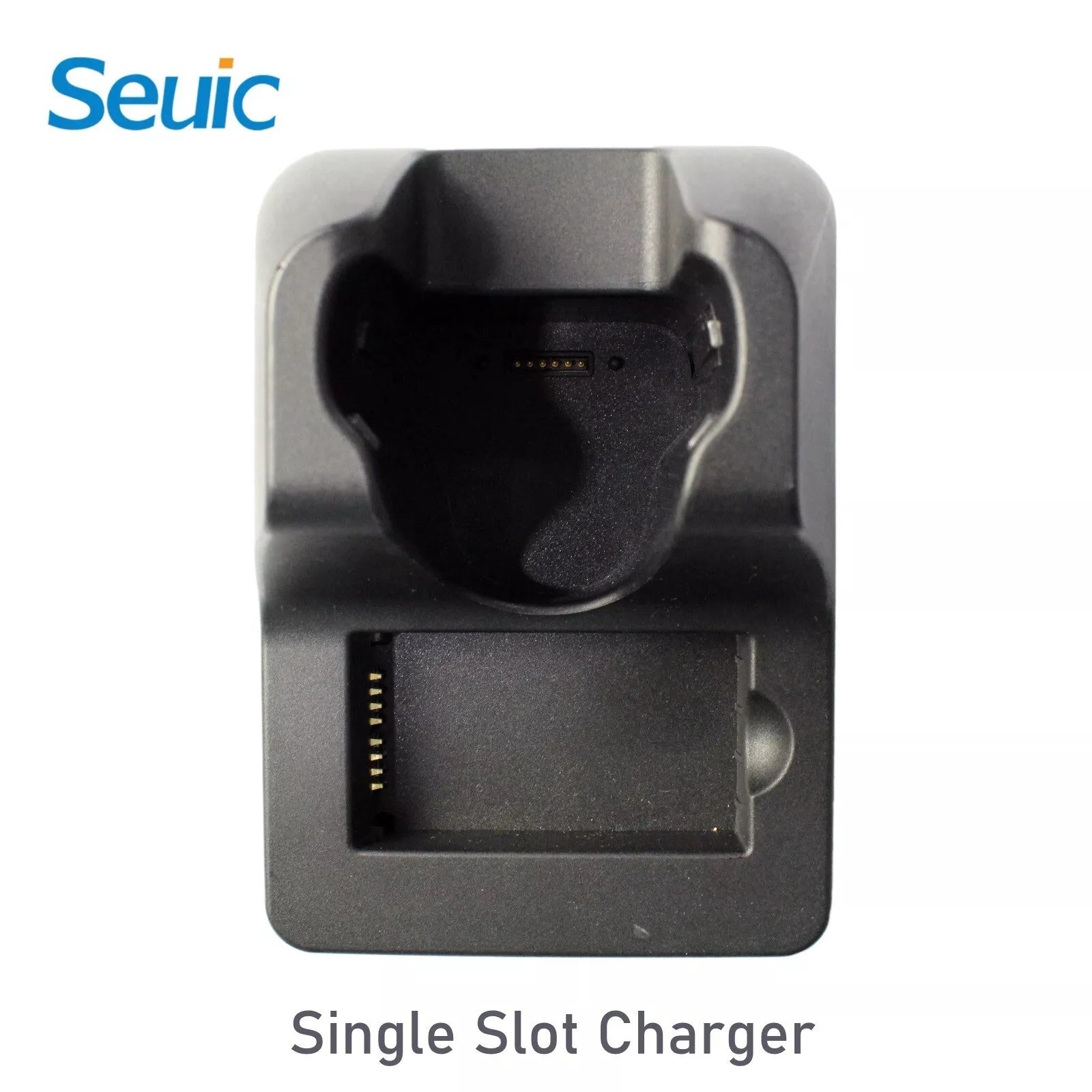

Seuic Single Slot Charging Cradle For AUTOID Q7S Barcode Scanner PDA
Seuic Single Slot Charging Cradle For AUTOID Q7S Barcode Scanner PDA
20% VAT for UK Customers will be applied during Checkout
Couldn't load pickup availability
| Technical Specifications | |
|---|---|
| Condition | Brand New |
| Compatible Brand | For Seuic |
| Compatible With | AutoID Q7S |
| Manufacturer warranty | 6 months |
| Safety Specification | GB60950 UL1950 GB4943 |
| MPN | For AutoID Q7S |
| Dimension | 160 x 115 x 80mm (L x W x H) |
| Rated Input Current | DC 5A (MAX) |
| Weight | 258g |
| Brand | Seuic |
| Pogo Pin Connector | On-resistance 100mΩ |
| Type | Docks & Cradles |
| Rated Output Voltage | DC 5V±5% (For the PDA) / DC 4.2V±2% (For the battery) |
| USB Interface Insertion and Extraction Force | ≥0.3KGF |
| Country/Region of Manufacture | China |
| Rated Input Voltage | DC 5V±5% |

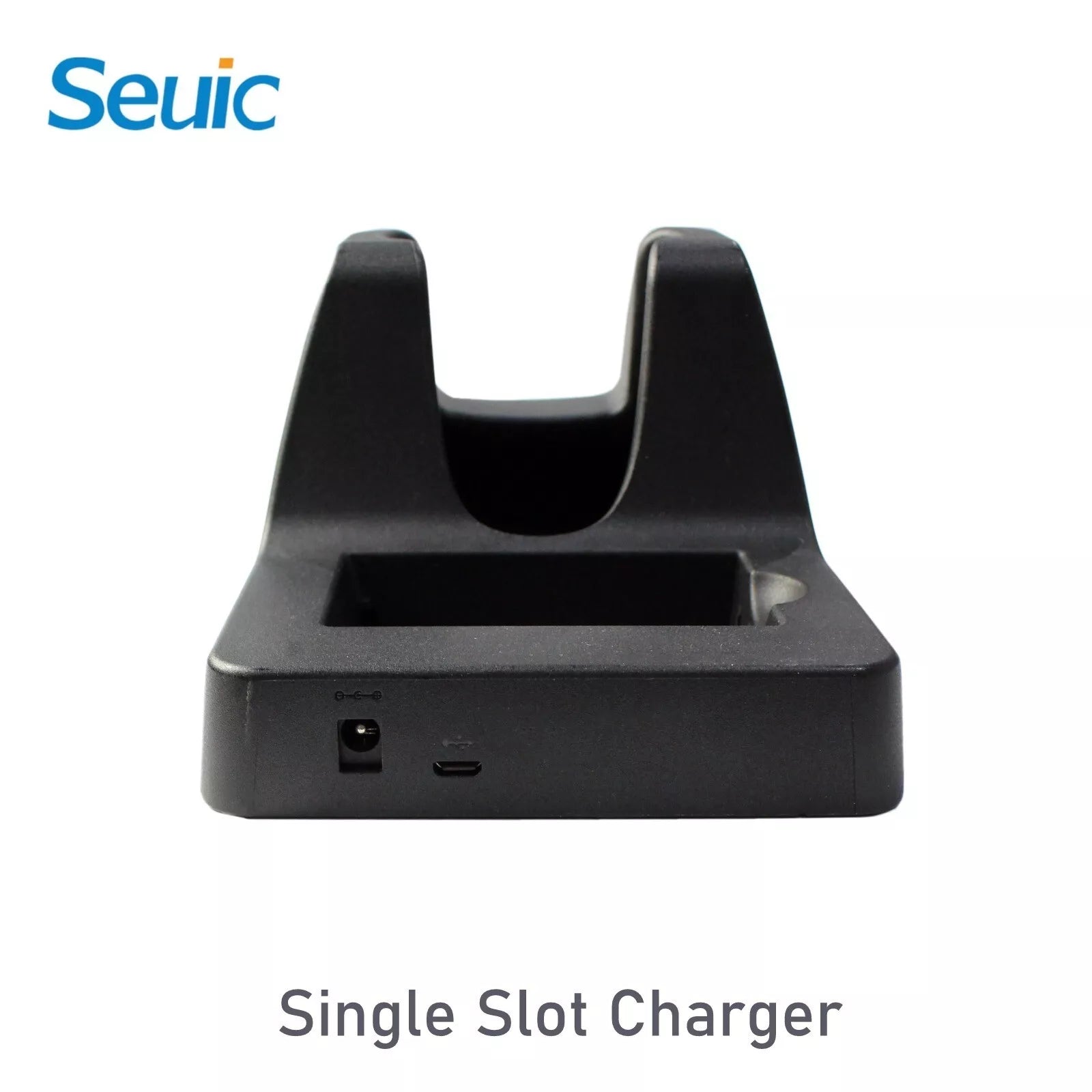

| Interface | DC interface, Micro USB 2.0, RJ45 |
| Sealing Grade | IP30 |
| Rated Output Current | DC 2A MAX (For the PDA) / DC 2A MAX (For the battery) |
| EAN | Does not apply |
Share
Collapsible content
Description
Battery Charging Instructions
1. Insert the battery into the single-slot charger.
2. Connect the specified AC plug of the power adapter to a standard socket.
3. Use the appropriate DC charging cable to link the power adapter to the charger.
4. Charger indicators:
• Off: No battery
• Red: Charging
• Green: Charge complete
• Red/Green flashing: Malfunction
5. The PDA and charging dock may become warm during charging; this is normal.
Specifications
Device Charging and Data Transmission Instructions
1. Place the PDA in the single-slot charger and switch the on/off toggle to the marked position ; the USB status indicator will turn green.
2. Connect the AC plug of the power adapter to a standard socket.
3. Use the appropriate DC charging cable to connect the power adapter to the charger.
4. To transfer data, connect the PC to the charger using a Micro-USB cable (note: the charger will not charge the device during data transmission).
5. The power indicator will turn red when the charger is connected to an external power supply.
6. The PDA and charging dock may feel warm during use; this is normal.
7. Charging status is indicated by the charging indicator: red for charging and green for fully charged.
ATTENTION
• Please read specification and product identification on the surface before using.
• Please use the product with battery in the normal indoor environment: Temperature range: 0℃~ +55℃, relative humidity: <90%RH.
• In the process of using, please keep the machine away from heat source and high voltage.
• Please keep the device out of the reach of children and please avoid any deliberate impact on the device.
• Please keep the pogo pin connector clean and away from other metal material, otherwise there is risks of short circuit, damage of the product, or even harm to the users.
• Do not drop the device or use in the strong vibration condition, it may cause bad performance and may be at the risk of being damaged.
• This machine can only be used with assorted power adapter.
