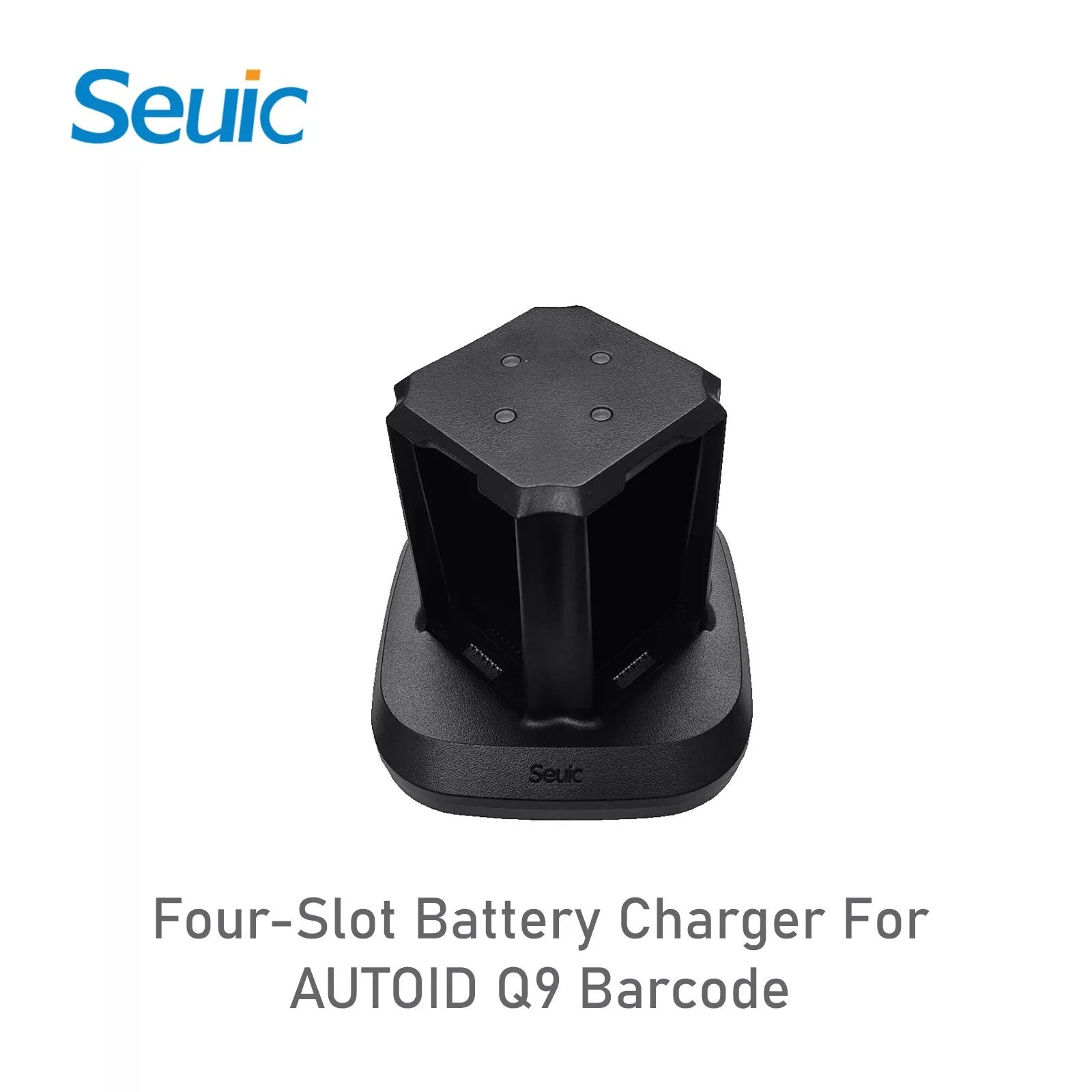

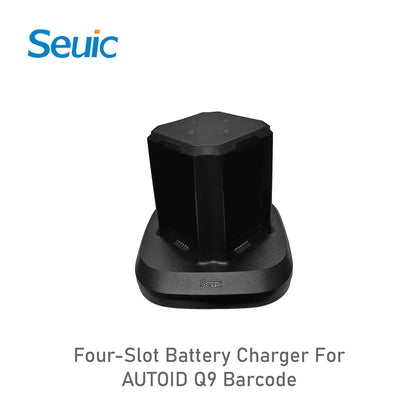

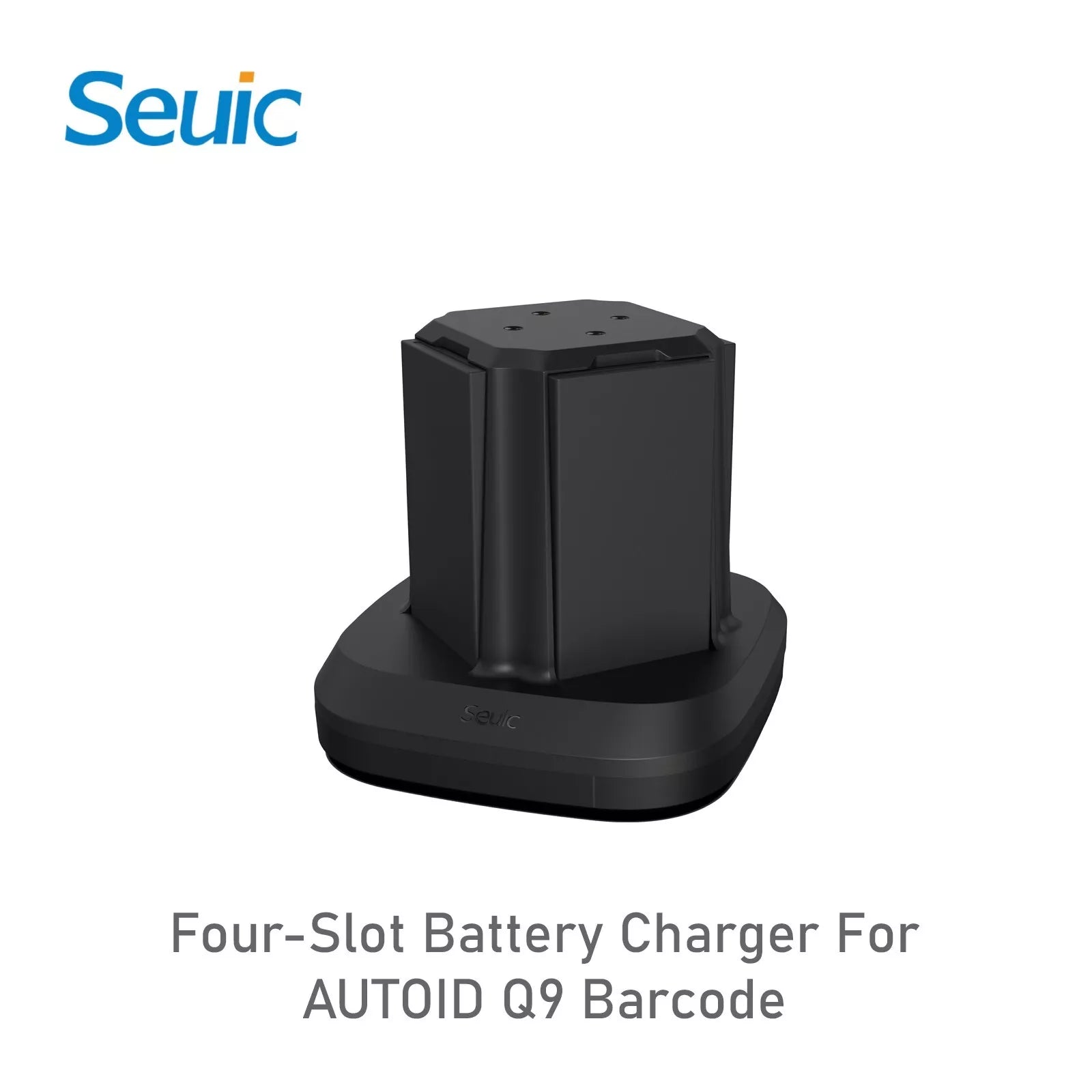

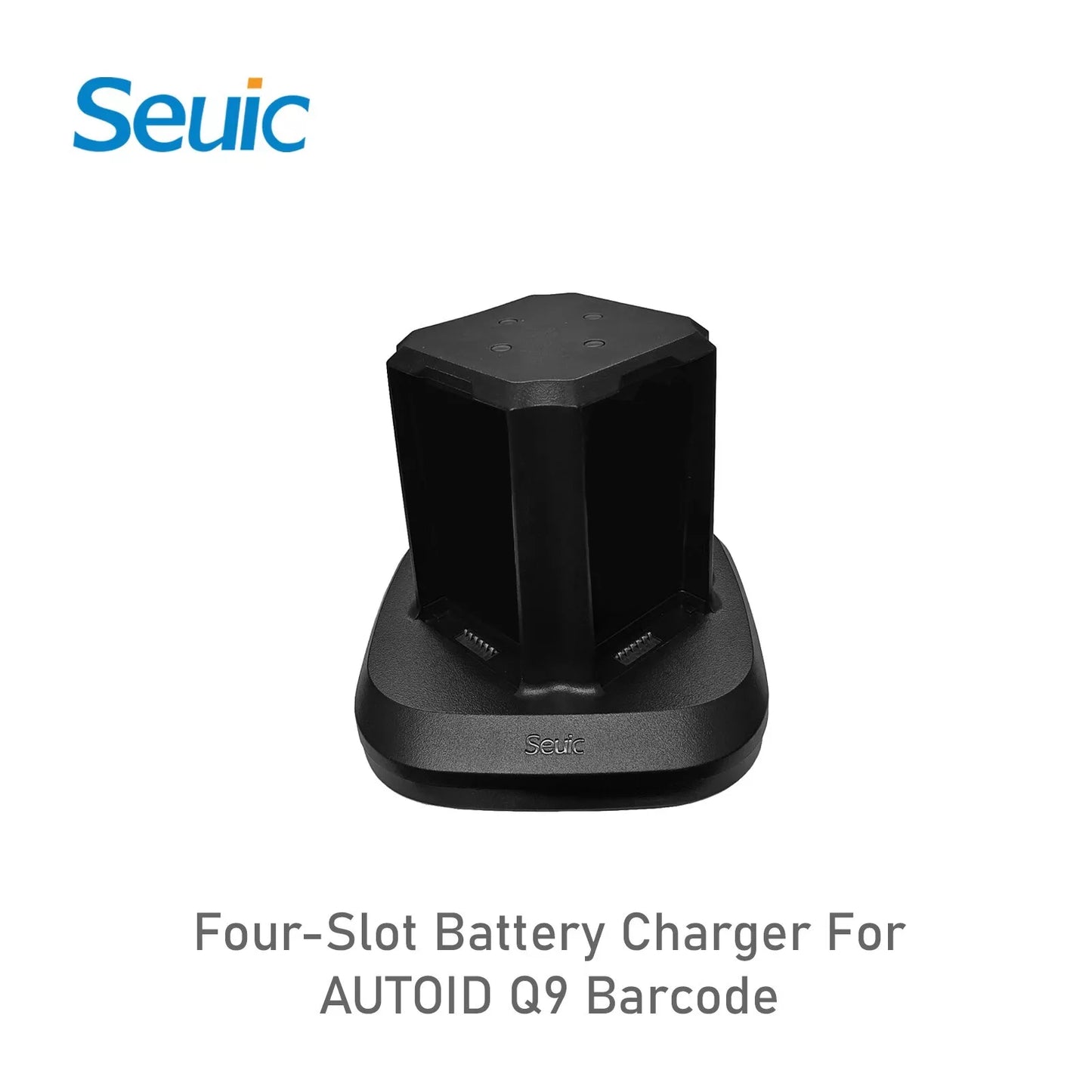

Four-Slot Battery Charger For AUTOID Q9 Barcode Scanner PDA
Four-Slot Battery Charger For AUTOID Q9 Barcode Scanner PDA
20% VAT for UK Customers will be applied during Checkout
Couldn't load pickup availability
| Technical Specifications | |
|---|---|
| Condition | Brand New |
| Data Interface | DC Interface |
| Safety Specification | GB60950 UL1950 GB4943 |
| IP Protection | IP30 |
| MPN | For AutoID Q9 |
| Rated Input Current | DC 5A (MAX) |
| Spring Pin Connector | On resistance 100mΩ |
| Operating Humidity Range | ＜90%RH |
| Anti-Static | Contact electrostatic test ≤ 8KV |
| Rated Output Voltage | DC 4.4±2% V * 4 |
| DC Interface Insertion & Extraction Force | ≥0.3KGF |
| Storage Temperature | -20℃~ +70℃ |
| Compatible Brand | For Seuic |
| Compatible With | AutoID Q9 |
| Storage Humidity | ＜95%RH |
| Operating Temperature Range | 0℃~55℃ |
| Manufacturer warranty | 6 months |
| Dimension | 160 x 115 x 111mm (L x W x H) |
| Weight | ＜209g |
| Brand | Seuic |
| Type | Battery Charger |
| Cooling Mode | Natural Convection |
| Standard Accessories | 12V 5A Adapter x 1, Packing Materials |
| Country/Region of Manufacture | China |
| Rated Input Voltage | DC 12±1V |
| Rated Output Current | DC 2A*4(MAX) |
| EAN | Does not apply |
Share
Collapsible content
Description
ATTENTION
• Before using this equipment, please read the operating instructions and product surface identification carefully.
• Please use the battery in a normal indoor environment. Temperature: 0 ~ 55 ℃, relative temperature: ＜ 90% RH.
• During use, keep away from heat source and high voltage, avoid children playing with the equipment, and do not beat the charger.
• Please keep the connector clean. Do not let other metal objects directly contact the connector of the charger during use, otherwise this product may be damaged due to danger or short circuit.
• Do not throw and impact the equipment or use it in a strong vibration environment, otherwise the charging effect will be damaged or affected.
• This equipment can only be charged with the supporting power adapter.
Specifications
Battery Charging Instructions
1. Fix the battery in the battery card slot of the four-slot battery charger.
2. Using AC power, insert the AC plug of the supporting power adapter into the standard socket and make it contact well.
3. Use the supporting DC charging line to reliably connect the DC head of the power adapter with the four-slot battery charger.
4. Charger Indicators:
• Off: No battery
• Red: Charging
• Green: Charge complete
• Red/Green Flashing: Malfunction / Faulty
5. During charging, it is normal for the battery and the four-slot battery charger to have slight heating.
