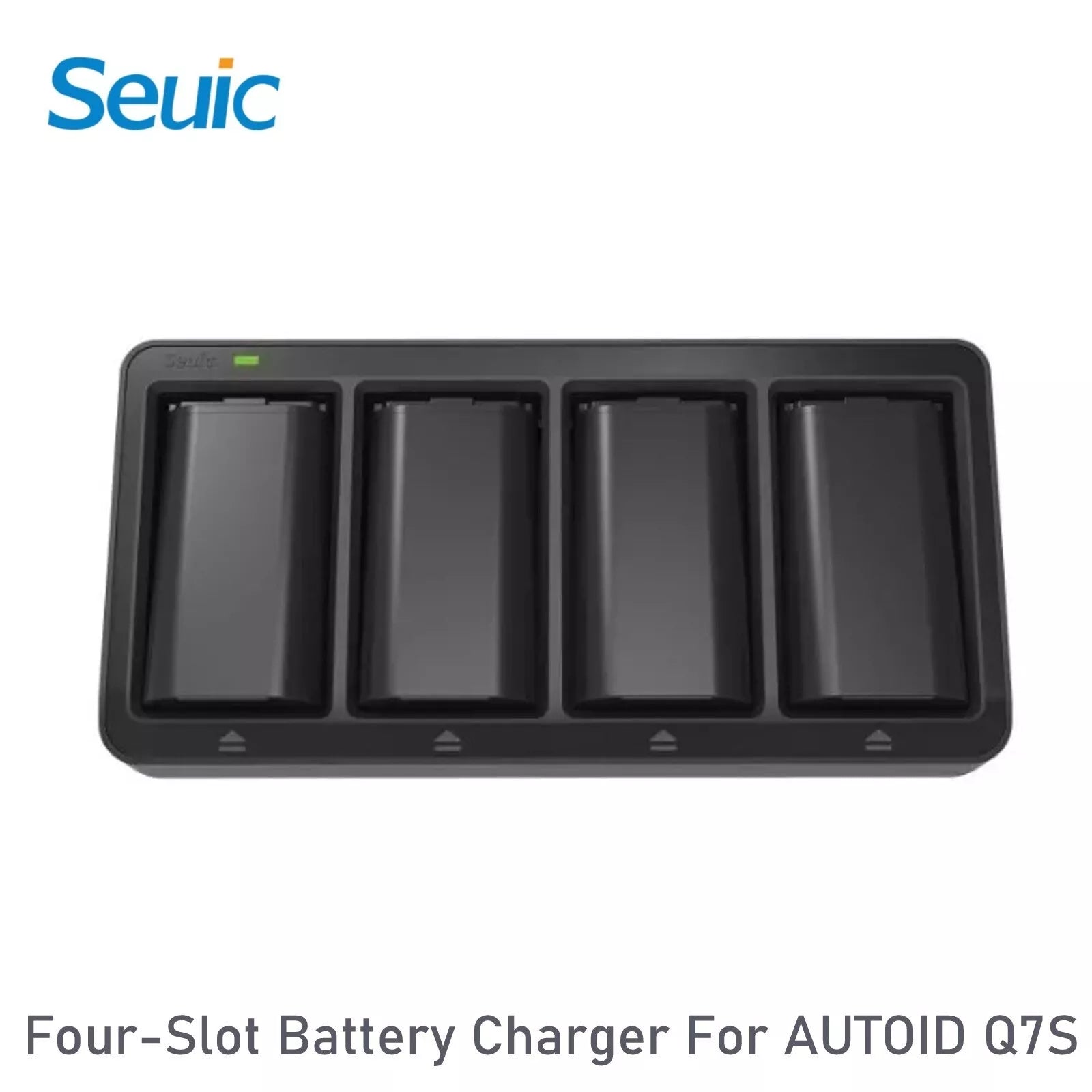

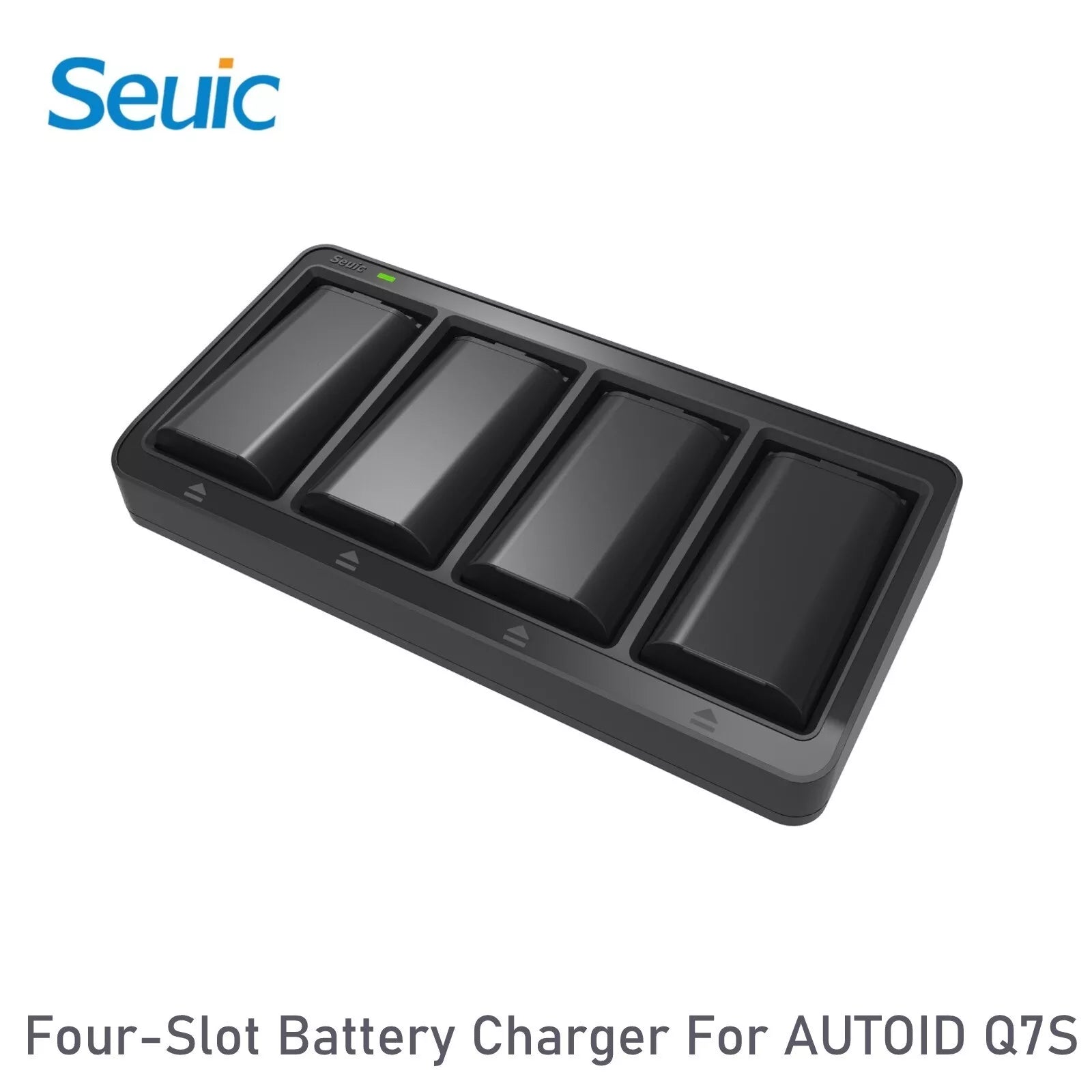

Four-Slot Battery Charger For AUTOID Q7S Barcode Scanner PDA
Four-Slot Battery Charger For AUTOID Q7S Barcode Scanner PDA
20% VAT for UK Customers will be applied during Checkout
Couldn't load pickup availability
| Technical Specifications | |
|---|---|
| Condition | Brand New |
| Compatible Brand | For Seuic |
| Compatible With | AutoID Q7S |
| Storage Humidity | 95%RH |
| Operating Temperature Range | 0℃~ +50℃ |
| Manufacturer warranty | 6 months |
| Safety Specification | GB60950 UL1950 GB4943 |
| MPN | For AutoID Q7S |
| Dimension | 204.3 x 99.3 x 30.6mm (L x W x H) |
| Rated Input Current | DC 5A (MAX) |
| Weight | 209g |
| Operating Humidity Range | 90%RH |
| Brand | Seuic |
| Pogo Pin Connector | On-resistance 100mΩ |
| Anti-Static | Contact electrostatic test 8KV |
| Type | Battery Charger |
| Rated Output Voltage | DC 4.2V±2%*4 |
| USB Interface Insertion and Extraction Force | DC interface power adapter≥0.3KGF |
| Country/Region of Manufacture | China |
| Rated Input Voltage | DC 5V±5% |
| Interface | DC interface |
| Sealing Grade | IP30 |
| Rated Output Current | DC 1.2A MAX* 4 |
| Storage Temperature | -20℃~ +70℃ |
| EAN | Does not apply |
Share
Collapsible content
Description
Battery Charging Instructions
1. Place the battery in the four-slot charger.
2. Connect the AC plug of the power adapter to a standard socket.
3. Use a Micro-USB charging cable to link the power adapter to the four-slot charger.
4. Charger indicators:
• Off: No battery
• Red: Charging
• Green: Charge complete
• Red/Green flashing: Malfunction
5. It’s normal for the PDA and charging dock to feel warm during charging; please use them with confidence.
Specifications
ATTENTION
• Please read specification and product identification on the surface before using.
• Please use the product with battery in the normal indoor environment: Temperature range: 0℃~ +55℃, relative humidity: <90%RH.
• In the process of using, please keep the machine away from heat source and high voltage.
• Please keep the device out of the reach of children and please avoid any deliberate impact on the device.
• Please keep the pogo pin connector clean and away from other metal material, otherwise there is risks of short circuit, damage of the product, or even harm to the users.
• Do not drop the device or use in the strong vibration condition, it may cause bad performance and may be at the risk of being damaged.
• This machine can only be used with assorted power adapter.
